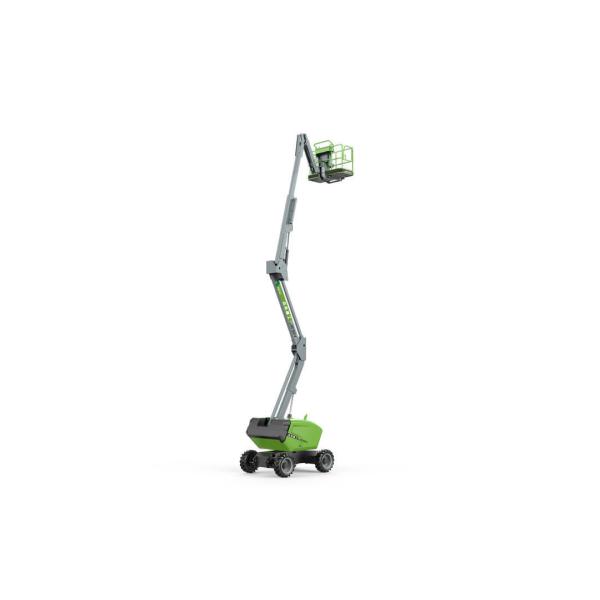

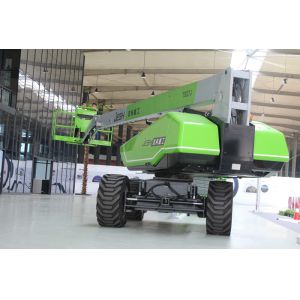

Hydraulic Articulating Man Lift Working Height 16m ISO Certificated

Ask Lasest Price
Brand Name :	JESH
Model Number :	AB14J
Certification :	CE/ISO
Price :	US$80000-US$140000
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	1000 units per year
Delivery Time :	10-30days

Add to Cart

Product Details
Company Profile

Hydraulic Articulating Man Lift Working Height 16m ISO Certificated

Hydraulic Articulating Man Lift Working Height 16m ISO Certificated

JESH articulating boom lift provides working height from 16m-25m ,which is designed for indoor or outdoor use on rough ground.

With superb “up and over” capabilities and excellent locating function, JESH articulating boom lift is suitable for working space which is hard to reach. It helps you to reach the working point freely, which improves working efficiency greatly.

The machine travels on rough ground smoothly with superb ground clearance and option of 2 or 4 wheels drive.It enables you to reach the working point precisely with industry- leading working height and superb capabilities.

Technical Parameters

Model	AB14J
Dimentions	Metric
Max Working Height	15.9m
Max Platform Height	13.9m
Max Horizontal Outreach	8.6m
Extendable depth downward	1.0m
Platform Width	0.76m
Platform Length	1.80m
Height-Stowed	2.27m
Length-Stowed	6.5m
Length-Transportation	5.5m
Width	2.1m
Wheelbase	2.05m
Ground Clearance-Center	0.33m
Productivity
Load capacity(unrestricted)	230kg
Min. Turning Radius(inside/outside)	3.3m/4.4m
Turntable Swing	355°
Platform Rotation	160°
Jib Rotation	135°
Drive Speed(stowed)	5.4km/h
Drive Speed(extended)	1.1km/h
Control	DC12V Proportional
Drive type	4 Wheels
Max. Gradeability	40%
Tire-solid foam filled( Dia.×Width)	835×290
Power
Engine	D2011L03I
Fuel	Diesel
Hydraulic Oil Tank Capacity	120L
Fuel Tank Capacity	70L
